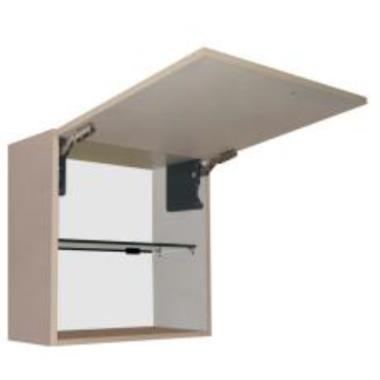

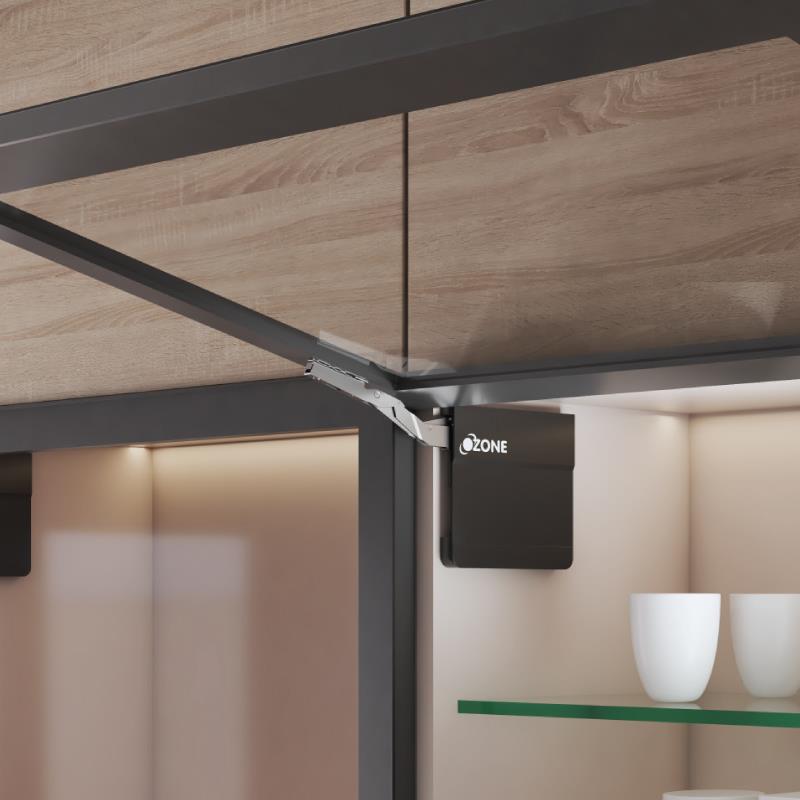

APPLICATION IMAGE

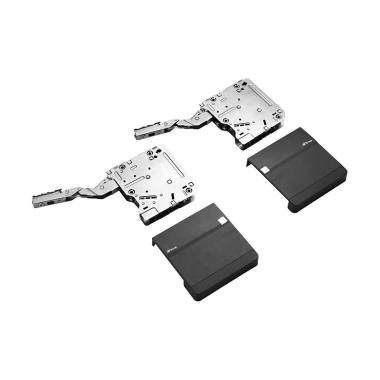

Heavy Duty 90° Opening Lift Up Mechanism
OK-LU-90N STD GREY
• Heavy duty 90° Opening Lift Up System with integrated soft close mechanism
• Load capacity up to 6kg (regular) & 13.25kg (heavy duty)
• Equipped with power adjustment as per door weight
• With integrated auto hold feature when opened more than 40 degrees
• Easy clip-on assembly
• For cabinet outer height: 500-600mm (regular) & 600-700mm (Heavy duty)
• For cabinet outer width: 600-1200mm (regular) & 900-1800mm (Heavy duty)
• Cabinet clear depth: Min. 240mm
• 3D Adjustment: Depth: +/-2mm; Height: : +/-2mm; Overlay: +/- 2mm
| Heavy Duty 90° Opening Lift Up Mechanism | Qty |
|---|---|
|
Heavy Duty 90° Opening Lift Up Mechanism
SKU Code
:
OK-LU-90N-STD-GREY
|
Pieces
|
|
Heavy Duty 90° Opening Lift Up Mechanism
SKU Code
:
OK-LU-90N-STD-WH
|
Pieces
|
(* Taxes, Freights, Insurances will be charged extra.)
