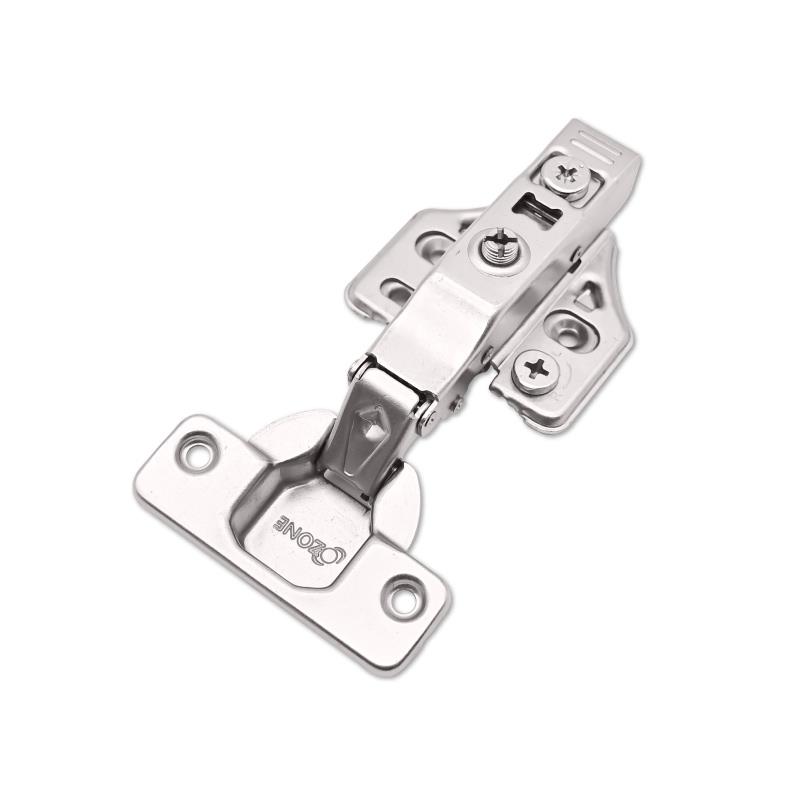

3D 3 hole plate hinges
- Clip on hinge with soft closing mechanism
- All three dimension adjustment with screw
- Height adjustment with ecentric cam screw
- Clip on soft close hinge with 3D Adjustment
- Mounting Plate equipped with Eccentric cam screw
- Range of door thickness: 14-20 mm
- Opening angle:100°
- Cup diameter: 35 mm
- Cup height: 11.3 mm
- Distance of cup from door edge: 3-7 mm
- Finish: Steel nickel plated
- 3D Adjustment: Overlay +2/-4mm; Depth -+-2 mm; Height +-2 mm
- 3 Dimensionally adjusted by eccentric screw in mounting plate
- Soft Closing
- Silent Functionality
- Strong and Durable
