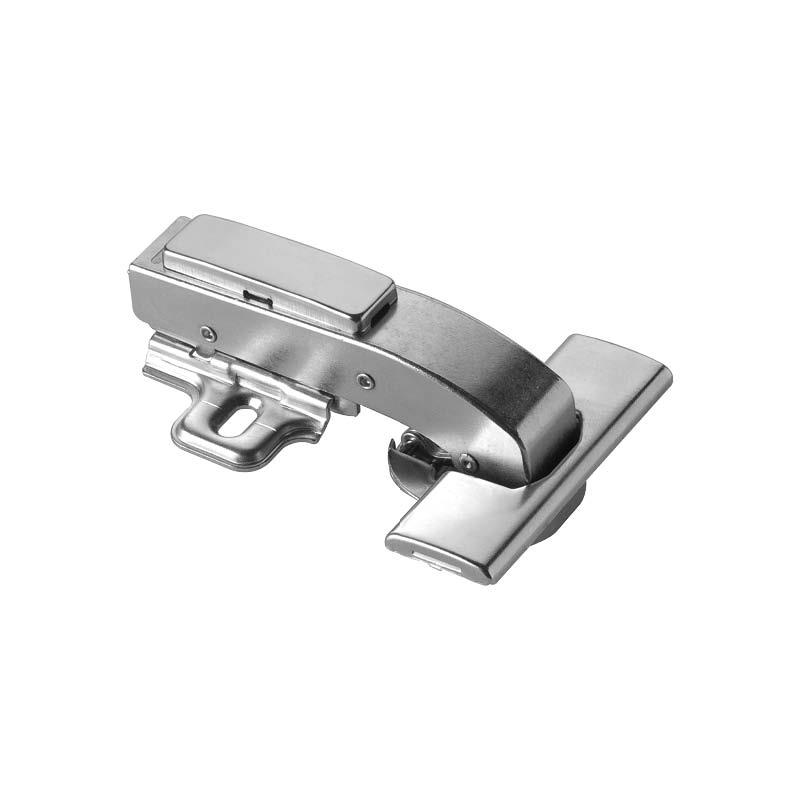

soft CLOSE screw-ON blind corner HINGE
SOFT CLOSE SCREW-ON BLIND CORNER HINGE WITH 2 HOLE MOUNTING PLATE
• Opening Angle: 90°
• Door Thickness: 14-24mm
• Blind Corner Hinge
• Finish: Nickel Plated
• 50,000 Cycle Tested
• 24 hrs Salt Spray Tested
• Soft close mechanism
• Hinge equipped with 2 hole clip-on mounting plates
• Range of door thickness: 14-24mm
• Cup diameter: 35mm
• Cup height: 11.3mm
• 3D Adjustment: Overlay +2/-4mm; Depth +/-2mm; Height +/-2mm
• Supplied with Cup and Arm cover cap
- Hotels
- Shops
- Offices
- Residential
- Airports
- Hospitals
| SOFT CLOSE SCREW-ON BLIND CORNER HINGE WITH 2 HOLE MOUNTING PLATE & COVER CAP | Qty |
|---|---|
|
SOFT CLOSE SCREW-ON BLIND CORNER HINGE WITH 2 HOLE MOUNTING PLATE
SKU Code
:
OEC451-G2S-SC-STD-NP
|
Pieces
|
(* Taxes, Freights, Insurances will be charged extra.)
