Upper door strip/shaft sleeve with color SSS
OMPS-B2 STD SSS
Color
Specification:

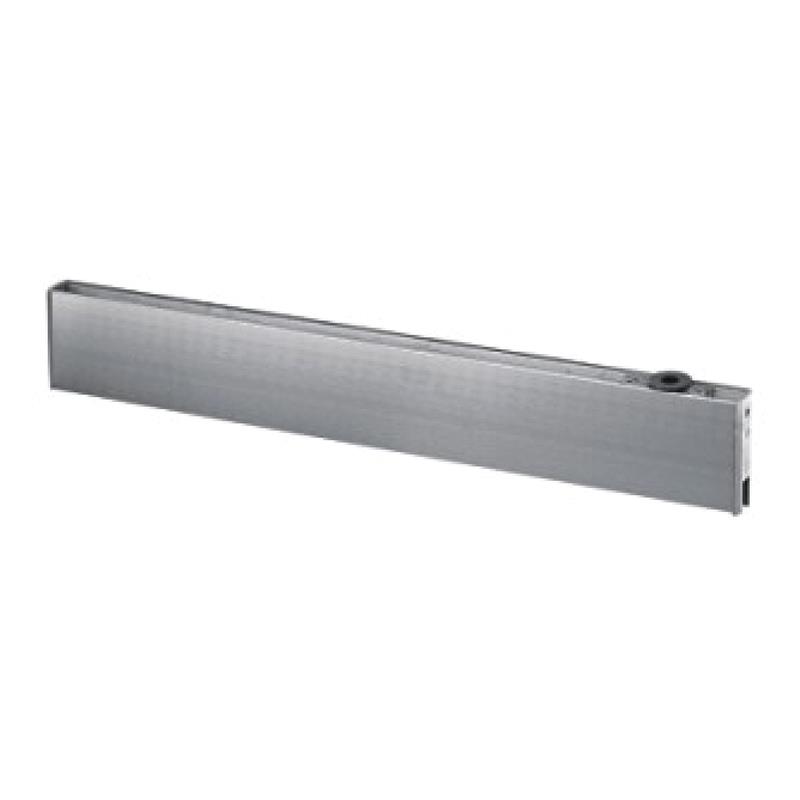

Upper door strip/shaft sleeve OMPS B-2
- Upper door strip (SWING DOOR) with shaft sleeve to accept the top pivot.
- Casting Material:-Aluminium.
- Cover Material:-SS-304
- Finish:-SSS

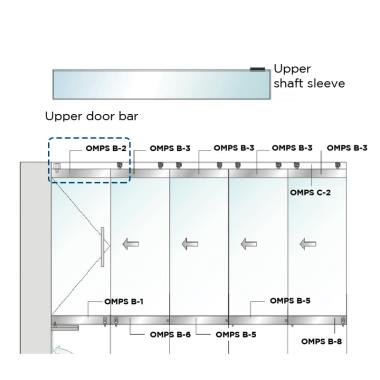

OMPS-B SYSTEM SPECIFICATION
Sliding Parking System
- Required space for Design/Making parking as per site condition/application feasibilty.
- Each Panels move linearly into Aluminium top track Channel (75X75) of Aluminium Finish, hung with help of nylon roller fixed with top rail/Profile of SS-304 material and Aluminium Finish.
- Each Panels would be disintegrated to each-other parked into the designed parking aside.
- Top track of Aluminium (75X75) and Designed Parking ,hung to MS structure or solid concrete (NOT IN OZONE SCOPE).
- Bottom rail would be lock into the floor with dust excluding socket of SS-304.

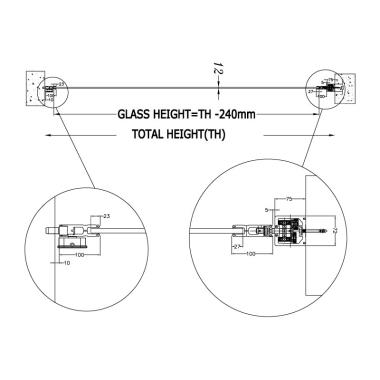

- Max Height:- 3000mm
Max widht:- 1200mm
Max Glass Thickness:- 12mm Toughened GlassMax Weight :-120kg
| Upper door strip | shaft sleeve | Qty |
|---|---|
|
Upper door strip/shaft sleeve with color SSS
SKU Code
:
OMPS-B2-STD-SSS
|
Pieces
|
(* Taxes, Freights, Insurances will be charged extra.)
